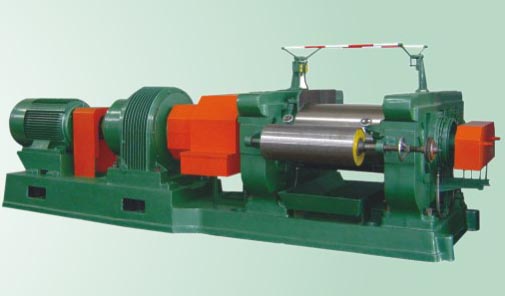

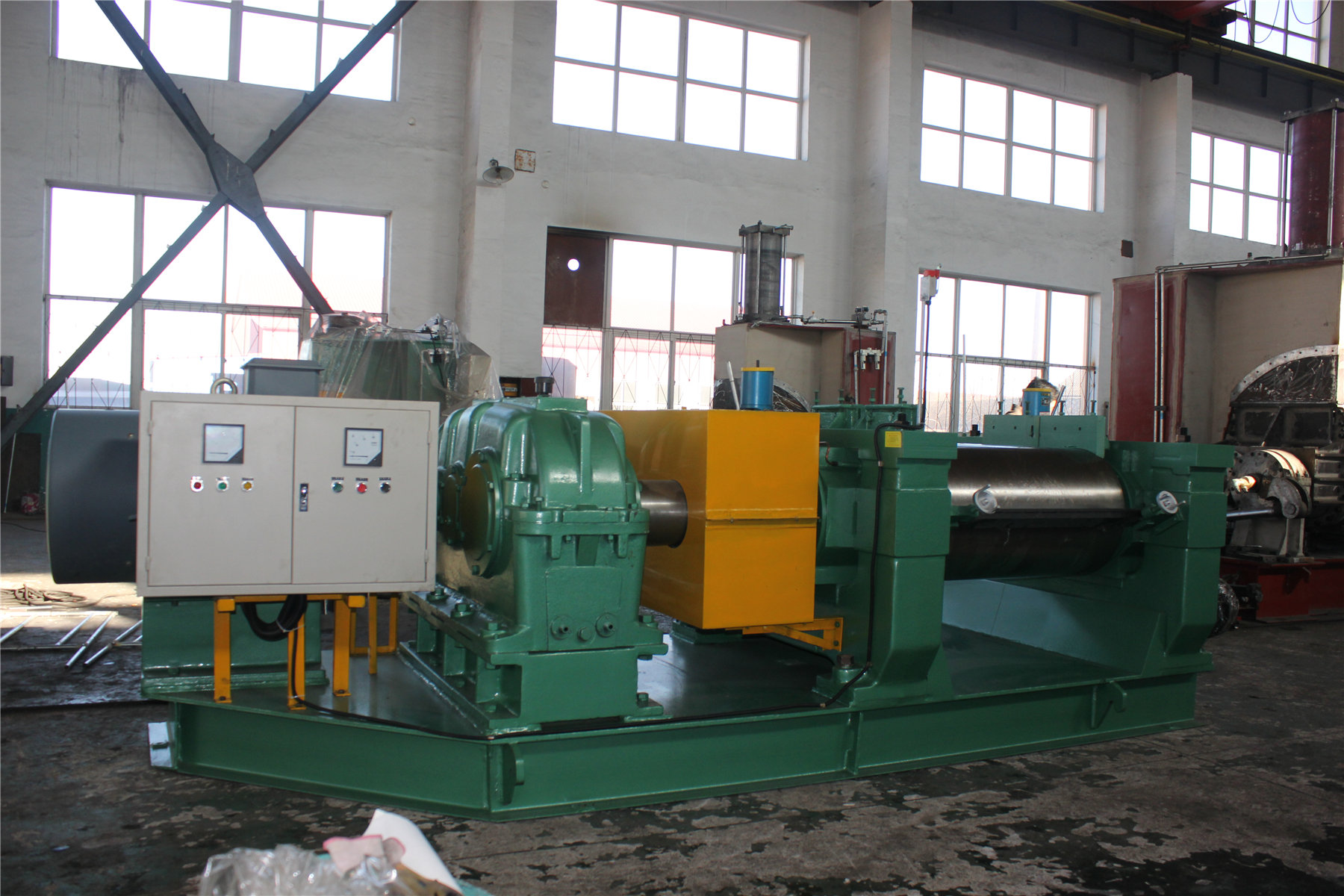

Jingdong tyre recycle equipment--Features & Benefits

Model & Specifications	XKJ-480
Working Diameter of F.& B Roll(mm)	480/610
Working Length of F. & B. Rolls (mm)	800
Linear Speed of Front Roll (m/min)	25.47
Linear Speed Ratio of F. & B. Rolls	1:1.82
Maximum Nip	15
Capacity (Kg/h)	300
Motor Power(KW)	75
Motor Rotating Speed(r/min)	980
Speed Reducer	Inverted-Y Speed Reducer
Reduction Ratio	9.89
Overall Dimensions(mm)	4790X2550X1780
Weight(kg)	19000

Structural features:

The roll is made of chilled cast iron of vanadium and titanium alloy. The surface is rigid and anti-wear.

The machine is equipped with an overload protection device to prevent the major components from being damaged due to overloading.

The transmission system may adopt either a NGW planetary hardened-gear speed reducer or a dual-output hardened-gear speed reducer, both of which are compactly structured with low noise and high efficiency.

The base of the machine is a complete framework of cast piece, which is convenient for installation.
