Jingdong tyre recycle equipment--Features & Benefits

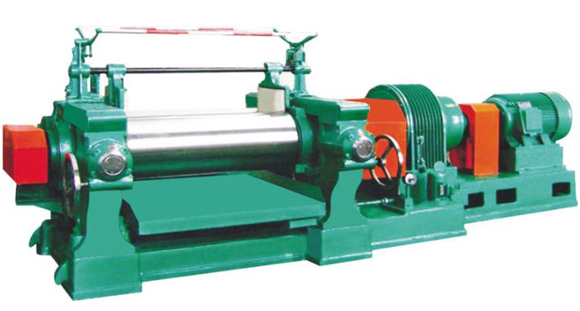

The rubber mixing mill, Be used for flaking and sheeting the devulcanized rubber.

Model		XK-400	XK-450
Diameter of Rolls (mm)		400	450
Working Length of Rolls (mm)		1000	1200
Working Speed of F.Roll (m/min)		19.3	23.1
Speed Ratio of F.& B.Rolls		1:1.27	1:1.27
Maximum Nip		10 (mm)	10 (mm)
Nip Regulating Method		Manual	Manual or Electric
Batch Capacity (kg per batch)		25~35	30~50
Main Motor	Power(KW)	45	55
Main Motor	Rotating Speed (r/min)	740	980
Overall Dimensions(mm)		4490X1770X1750	5510X1900X1750
Weight(kg)		9000	11500

Structural features:

The roll is made of chilled cast iron of vanadium and titanium alloy. The surface is rigid and anti-wear.

The machine is equipped with an overload protection device to prevent the major components from being damaged due to overloading.

The transmission system may adopt either a NGW planetary hardened-gear speed reducer or a dual-output hardened-gear speed reducer, both of which are compactly structured with low noise and high efficiency.

The base of the machine is a complete framework of cast piece, which is convenient for installation.
