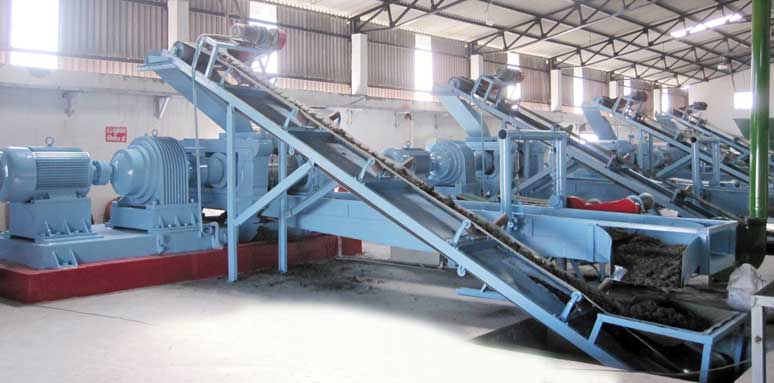

The Rubber Powder Production Line crushes the waste tire and other rubber resource into rubber powder which sized 20-30mesh. During the process, steel, fiber and other useful materials will be collected through classifying, filtering, purifying. These rubber powder are very good material for reclaim rubber and other more rubber product.
The Characteristic
1. Energy conservation: The whole production line power with capacity 450-500kg/h is only 130-140kw. It has the lowest cost.
2. Small occupied area: The occupied area of production line is about 100-200sqms.
3. Easy to operate and save labor: one line need about 2-3staffs/shift.
3. Environmental friendly: The complete production line is applied with the most advanced pollution-proof devices, which makes the three waste (waste water, gas, dust and noise) completely up to the national environment-protection standard.
|
NO |
Name |
Numbers |
Total Power
（KW） |
|
1 |
TRE-1028 Tyre cutter |
1 set |
4 |
|
2 |
TRE-1027 Bead-rubber separator |
1 set |
15 |
|
3 |
TRE-1006 Rubber strip cutter and Rubber blocks cutter |
1 set |
11.5 |
|
4 |
TRE-1010 Double –roller crusher |
1 sets |
90 |
|
5 |
Assembly units of TRE-1010 Double –roller crusher
(including Linear Vibrating sieve, Magnetic metal remover, Antiskid conveyor,) |
1 sets |
15 |
|
6 |
fiber separator set |
1 set |
3 |
|
Occupied area（㎡） |
About 200 m2 |
|
Crush waste tire（kg/h） |
600-700kg/h |
|
Capacity（kg/h）Size of discharged materials(mesh) |
450-500kg/h ( about 20-30mesh) |
|
