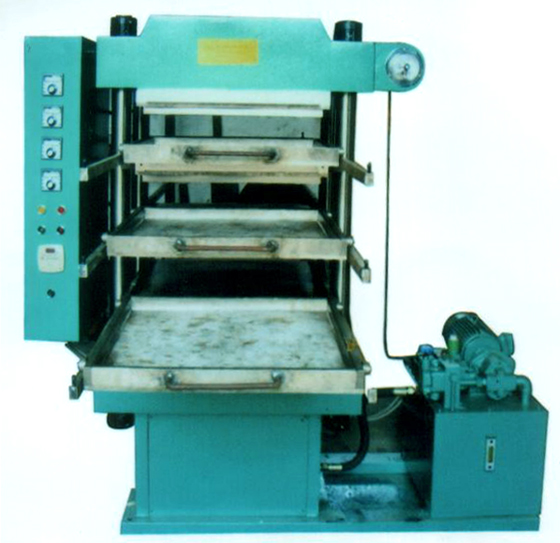

Item: Four columniation. Mainframe, crossbeam and oil box jointing together.

Clamping force(max): 0.5MN

Heating plate: 550mm*550mm

Layer distance: 150—180mm

Working layer: 4 layers

Diam plunger: ￠200mm

Plunger stroke: 450mm

Machine power: 23KW(each heating plate:4KW*5F. driver:3KW)

Plate temperature(max): ≤200℃

Temperature control: heated by electronic resistance. Each heating plate fix a electronic self-regulation instrument. Temperature should be show and controled by instrument.

Mold: 4 sets of square mold (use to manufacture 500*500mm rubber mat with thickness 15-25mm or 35-50mm) and 4 pcs of under-mold(loading material for preparation).

Machine control: two workers control by both side of machine. After loading material in mold, machine finish all process. including auto-releasing air, auto-holding pressure. Follow up pressure, auto-holding temperature. auto-demoulding.

Machine size: (L*W*H) 1700*660*2000mm

Weight: 2600KG
